AIRE - Horizontal Slat Balustrade

AIRE - Horizontal Slat Balustrade

Products

33

Mount Options

Aluminium Base Plate, Aluminium Face Mount, Aluminium Core Drilled

A non-weld aluminium slat balustrade system for new builds and renovations.

AIRE is built around 65mm × 16.5mm horizontal slat balusters paired with 50mm × 50mm posts. It requires no welding, using patented mechanical fixing technology. A rectangular or oval handrail completes the assembly, and installation suits both core drill and base plate applications. Components can be pre-cut and assembled on site or in a factory, backed by NATA load testing.
View System Components
Key Features
  • Complete balustrade system featuring non-weld technology.
  • Privacy screening that allows airflow.
  • Compliance certification available.
  • Three fixing options: core drill, base plate or face mount.
  • Interpon D1000 powder coat, backed by warranty.
  • Option for raked installation for staincases.
Mount Options

Base options for different surfaces and fixings.

Aluminium Base Plate

Aluminium Base Plate

Posts are fixed to a flat plate that bolts directly onto the surface of existing concrete or timber decking, allowing quick installation without drilling deep holes.

Aluminium Face Mount

Aluminium Face Mount

Posts are bolted to the side face of a concrete slab, plinth, or retaining wall, keeping the walkable surface clear and suiting edges where top-fixing isn't practical.

Aluminium Core Drilled

Aluminium Core Drilled

Posts are set directly into holes drilled into an existing concrete slab and secured with grout or chemical anchoring, giving a clean, flush finish with no visible base plates.

Assembly Options

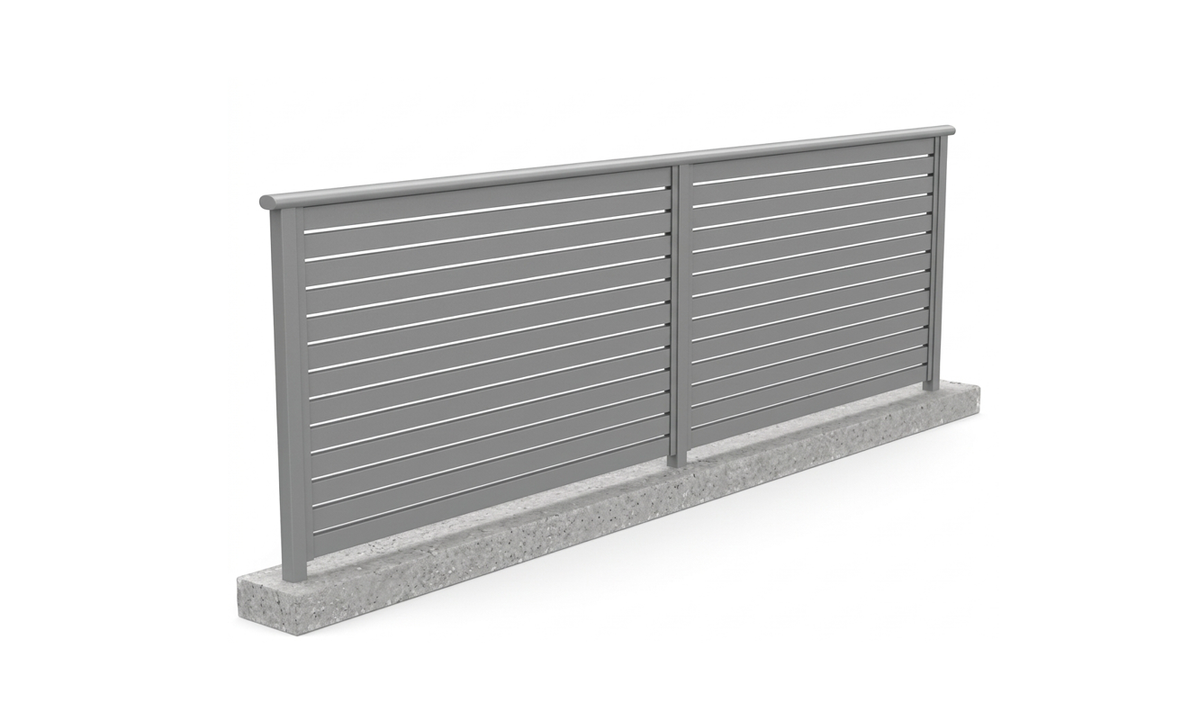

AIRE Horizontal Slat Balustrade Deck Mount

AIRE Horizontal Slat Balustrade Deck Mount

AIRE Horizontal Slat Balustrade Deck Mount with Gap

AIRE Horizontal Slat Balustrade Deck Mount with Gap

AIRE Horizontal Slat Balustrade Face Mount with Gap

AIRE Horizontal Slat Balustrade Face Mount with Gap

AIRE Horizontal Slat Balustrade Face Mount

AIRE Horizontal Slat Balustrade Face Mount

Components

The full component tree

Covers & Inserts

SS-POSTPLUG-4PK

Post Plug - 32mm or 42mm (4 Pack)

2 Sizes

QS-5800-CFC-B

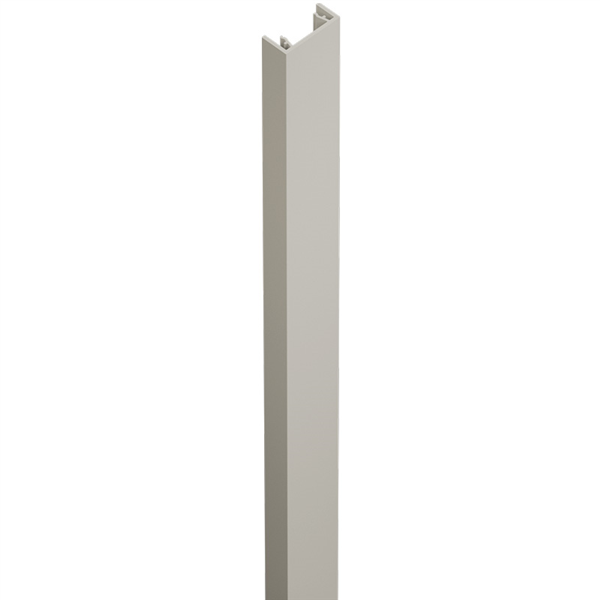

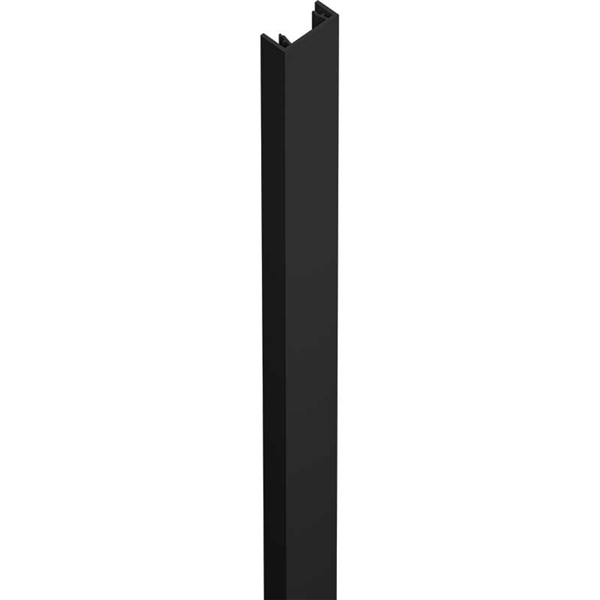

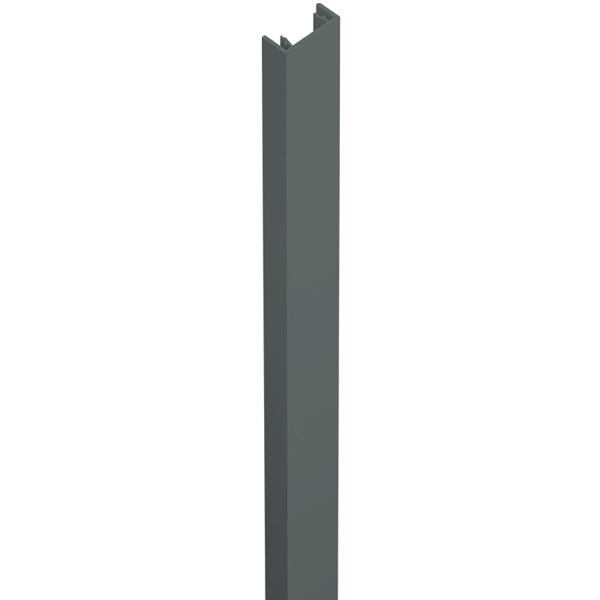

Concealed Fixing Cover - 5800mm

Covers & inserts

XP-DC-2P-B

Two Part Domical Cover - For Screw Fixed Base Plated Posts

A50-ECA-R-B

Rectangular End Cap

XP-DR-MN

Aluminium Dress Ring - Suits 50 × 50mm post

A50-DC-M

Domical Cover - Suits 50 × 50mm post

A50-ECA-O-M

Oval End Cap

Fixings

GS160LAG

M12 Lag Screw (SS304)

4 Sizes

AR-SCR-BR-50PK

12G Panhead Screw - 12G × 25mm Square Drive Head (50 Pack)

GS150ROD

M12 Threaded Rod 120mm, 150mm or 1000mm (SS304)

3 Sizes

A50-BRACKET-R-B-2PK

Offset Bracket - Rectangular (2 Pack)

A50-BRACKET-O-M-2PK

Offset Bracket - Oval (2 Pack)

A50-5800-OHR-B

Oval Handrail with Channel Insert - 5800mm, 75 × 30mm

A50-5800-RHR-MN

5800mm Rectangular Handrail

XP-SCREWS-B

Self Drilling Wafer Screw - 10G × 16mm, Bag of 100

PP-SCREW-B-50PK

Self Drilling Wafer Screw - 10G × 16mm, SS304, Bag of 50

Grouts & Adhesives

SOUD-CA1400

Soudal Chemical Anchor - 280ml

SOUD-CA1400

Hardware

S-110LAG-4PK

Timber Fixing Kit (4 Pack)

S-110LAG-4PK

SOUD-GUN

Soudal Heavy Duty Cartridge Gun

SOUD-GUN

SOLAR-LIGHT-2PK

Solar Light (2 Pack)

SOLAR-LIGHT-2PK

DB-PH3

Driver Bit - Suits Phillips #3 Head

DB-PH3

S-120ROD-4PK

Concrete Fixing Kit (4 Pack)

S-120ROD-4PK

A50-1400-INF-W

Post Infill

2 Sizes

DB-SQ2.4-SQ3.4

Square Head Driver Bit

DB-SQ2.4-SQ3.4

QS-5800-SF-M

Side Frame - 5800mm

AR-5800-FP-MN

Full Post - 5800mm, 50 × 50 × 3.2mm

AR-1500-FMLR-B-2PK

Face Mount End Posts - Left & Right - 1500mm (2 Pack)

AR-1050-FPBP-B

Full Post with Base Plate (Welded) - 1050mm

AR-1500-FMID-B

Mid Face Mount Post

A50-WP-W

Aluminium Wall Plate

A50-1400D-HALF-B

Half Post

2 Sizes

XP-6100-S65-B

65mm × 16.5mm Slat with Centre Web

AW-5800-S65-WRC

65mm × 16.5mm Slat with Centre Web - 5800mm

THE GLASS OUTLET DIFFERENCE

Why choose a Glass Outlet system?

Complete, engineered systems

Complete, engineered systems

Pre-prepared for straightforward installation, with less on-site fabrication.

Installation speed and simplicity

Installation speed and simplicity

Pre-prepared for straightforward installation, with less on-site fabrication.

One system, many applications

One system, many applications

Fewer products to spec, stock and install across a project.

Consistency and compliance at scale

Consistency and compliance at scale

Consistent standards across every order simplify compliance sign-off.
Gallery

AIRE - Horizontal Slat Balustrade in the wild.
